● Ergonomic trinocular viewing body with 0° to 30° adjustable inclination eye tubes
● Eyetubes rotate 180° increasing height by up to 3 inches
● EW10X/22mm field of view focusing eyepieces with roll down eye guards
● Magnification range 8X to 65X (with 10X eyepieces)
● 78mm working distance
● 1.0X Objective lens included
Specifications:
● Optical system: Galilean
● Drawing Tube: Tilting binocular head 0°-35°, Inclination interpupilary distangce 51-75mm

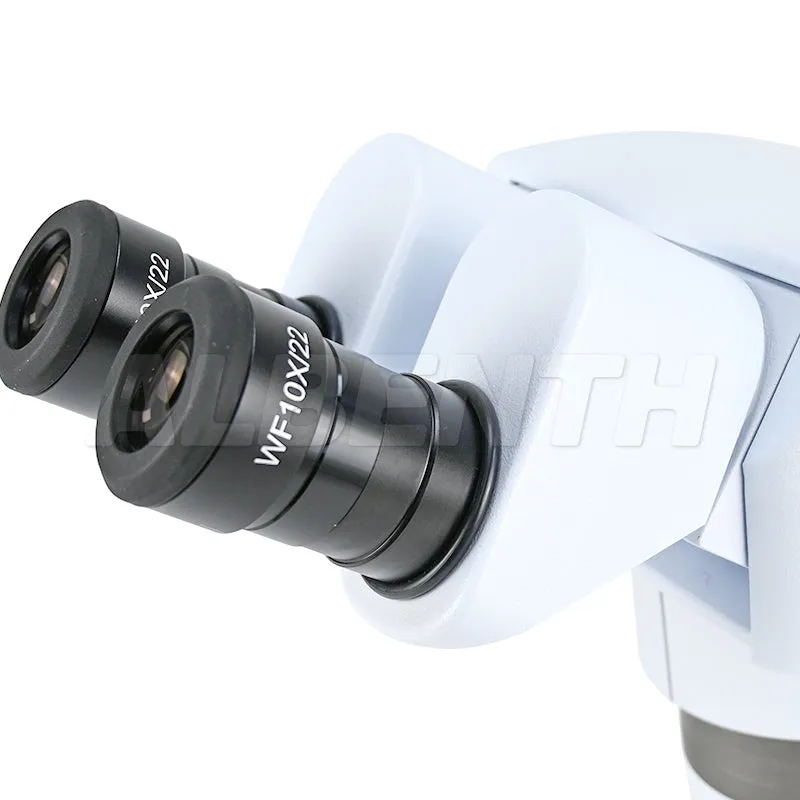

● Eyepiece: EW10X/22mm
● Zoom Objective: 0.8X-65X
● Zoom ratio: 8 : 1
● Click-stops at: 0.8, 1, 2, 3, 4, 5 and 6.5x positions
● Objective: Plan achromatic objective 1X (N.A. 0.09)
● Working Distance: 78mm
Packing list:
1x Pair EW10x/22mm Eyepieces
1x Zoom Binocular Body 0.8X-65X
1x Plan Achromatic Objective 1X
1x Pair Eye-Guards
1x Dust Cover
